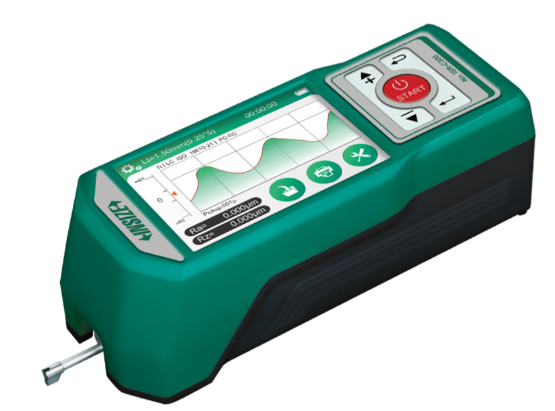

Roughness Testers (Separable Type)
BDT 205,017/-
Product Details
Brand: INSIZE
Model: ISR-C300
Country Of Origin: China
Features:
Roughness tester can be operated by mobile phones or computers
Optional wireless or Bluetooth receivers can be used to output keyboard signals, connecting to a computer to send data to Excel
Support bluetooth printer
36 roughness parameters
Meet ISO, DIN, ANSI, JIS standards
Display roughness values, profile and curve
Memory of maximum 100 data and waveform
Built-in lithium battery, working time more than 50 hours
Touch screen
Automatic power off
| Probe: | Inductive, Diamond Stylus (5Îŧm/90°) |
| Measuring Force: | 4mN |
| Range: X-axis: | 17.5mm, Z-axis: 400Îŧm |
| Resolution (Ra): | 0.001Îŧm |
| Accuracy: | Âą10% |
| Output: | USB and Bluetooth |
| Battery Life: | >50 hours |
| Dimensions: | 158Ã64Ã52mm |
| Weight: | 400g |
The INSIZE ISR-C300 Roughness Tester (Separable Type) is an advanced, versatile surface metrology system designed for precision and ease of use. Its standout feature is its separable design, allowing the main unit and the probe to be used together as a handheld device or separated via a 1-meter cable to access difficult-to-reach areas. Featuring a built-in touch screen and a massive >50-hour battery life, it is built for prolonged field use.
The ISR-C300 evaluates 36 roughness parameters compliant with ISO, DIN, ANSI, and JIS standards. It offers high resolution (0.001μm) and accuracy (±10%) using a durable diamond stylus (5μm/90°). Beyond its standalone capabilities, it can be operated wirelessly by mobile phones or computers via Bluetooth, allowing users to view profiles and curves remotely and export data directly to Excel. It comes complete with a comprehensive standard delivery, including software, a calibration block, an adjustable stand, and a magnetic stand adapter, making it a turnkey solution for demanding surface inspections.
INSIZE ISR-C300 Roughness Tester – Separable, Touch-Screen Surface Metrology
Achieve outstanding surface finish control with the INSIZE ISR-C300 Roughness Tester (Separable Type). Engineered for professional metrology labs and demanding shop floors, this versatile instrument uniquely features a separable probe and main unit, allowing you to measure in tight spaces, internal bores, or awkward angles with ease.
Key Features & Benefits:
-
Separable Design: The probe connects to the main unit via a 1-meter cable, giving you the flexibility to measure hard-to-reach surfaces while keeping the screen in view.
-
Advanced Connectivity: Operate the device remotely via your PC or mobile phone using Bluetooth. Data can be seamlessly exported to Excel, and the system supports direct printing via an optional Bluetooth printer.
-
High Precision & Capacity: Delivers a resolution of 0.001μm and an accuracy of ±10% over a Z-axis range of 400μm. It evaluates 36 roughness parameters (including Ra, Rz, Rq, Rk, etc.) to meet ISO, DIN, ANSI, and JIS standards.
-
Touch Screen Interface: A bright, intuitive color touch screen displays measurement results, roughness profiles, and Abbott-Firestone curves (Rmr analysis) in real-time.
-
Extended Battery Life: The built-in lithium battery provides over 50 hours of continuous operation, ensuring the tester is ready whenever you are.
-
Complete Turnkey Kit: Comes fully equipped with a standard probe (5μm/90°), calibration block, adjustable stand, magnetic stand adapter, software, and USB cable.
-
Expandable Probe System: A vast array of optional probes, including small hole, deep groove, and extension rods, are available to tackle any measurement challenge.
