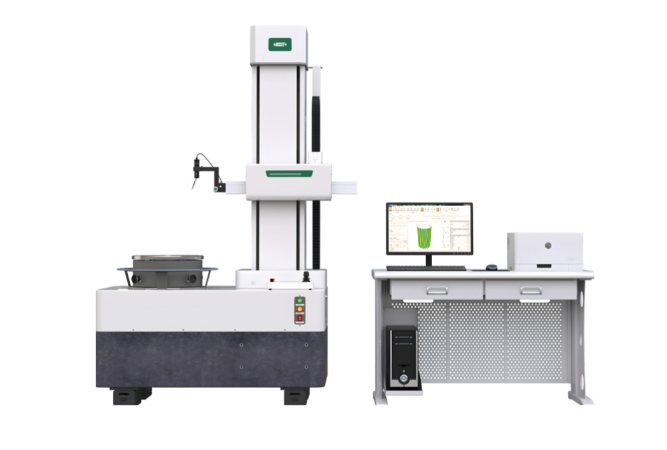

Roundness/Cylindricity Tester
BDT 0/-
Product Details
Brand: INSIZE
Model: RCT-500
Country Of Origin: China
Features:
Automatic centering and leveling
Capable of measuring heavy, large components such as spindle bushings, shaft cores, gear shafts, crankshafts, and other long shaft components
Evaluation items:
Cylindricity module: cylindricity, radial full run, coaxiality, taper, radius
Roundness module: roundness, concentricity, radial single jump, wall thickness difference
Straightness module: straightness, parallelism, squareness
Single section flatness module: single section flatness, axial single hop, perpendicularity, parallelism
Multi-section flatness module: multi-section flatness, parallelism, axial full runout, perpendicularity
Commutator module: monolithic bounce, immediate bounce, interval difference
| Probe Measuring Range: | Âą500Âĩm |
| Z-axis Measuring Range: | 800mm |
| Max. Workpiece Diameter (Rotation): | 500mm |
| Weight Capacity: | 80kg |
| Rotation Accuracy: | (0.05+6H/10000)Âĩm |
| Dimensions: | 1450Ã765Ã2200mm |
| Net Weight: | 1350kg |
The INSIZE RCT-500 Roundness/Cylindricity Tester is a heavy-duty, high-precision metrology system engineered to handle large and long shaft components such as crankshafts, gear shafts, and spindle bushings. Featuring a massive 800mm vertical Z-axis measuring range and an 80kg weight capacity on its automatic adjustment stage, it provides the stability required for heavy industrial inspection.
Equipped with a high-resolution circular grating detector (14,400 sampling points) and a motorized X/Z axis system, the RCT-500 offers incredible precision (down to 0.001µm resolution) and automatic centering/leveling capabilities. Its comprehensive software suite covers multiple evaluation modules, including Cylindricity, Roundness, Straightness, Single/Multi-section Flatness, and Commutator analysis, utilizing advanced reference algorithms (LSC, MZC, MIC, MCC, etc.). The system comes complete with a computer, printer, precision chuck, air filter, and all necessary calibration tools for a fully turnkey metrology solution.
INSIZE RCT-500 Roundness/Cylindricity Tester – Heavy-Duty Precision Metrology
Measure large and heavy cylindrical components with unprecedented accuracy using the INSIZE RCT-500 Roundness/Cylindricity Tester. Designed for heavy machinery, automotive, and aerospace manufacturing, this advanced metrology system features a massive 800mm Z-axis range and an 80kg load capacity, making it ideal for inspecting crankshafts, gear shafts, and spindle bushings.
Key Features & Benefits:
-
Heavy-Duty Capability: The robust rotary and automatic adjustment stages are built to handle large, long shaft components up to 500mm in rotation diameter and 80kg in weight.
-
Automatic Centering & Leveling: Drastically reduces setup time and operator error, ensuring repeatable, highly accurate measurements.
-
Ultra-High Precision Detection: Equipped with a circular grating detector featuring 14,400 circumferential sampling points and a probe resolution of 0.001µm.
-
Comprehensive Software Modules: Includes dedicated analytical modules for Cylindricity (taper, coaxiality), Roundness (concentricity, wall thickness), Straightness, Single/Multi-section Flatness, and Commutator bounce.
-
Advanced Analytical Ability: Supports multiple reference benchmarks (LSCY, MZCY, MICY, MCCY, OSCY) and customizable measurement bands (upr filters).
-
Complete Turnkey System: Standard delivery includes the main unit, computer, printer, precision chuck, standard block, air filter, dryer, and the full acquisition and analysis software system.
